X-Ray & DR

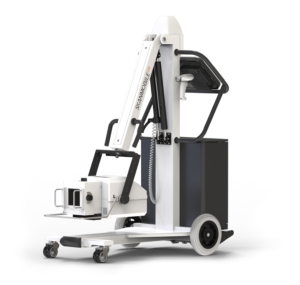

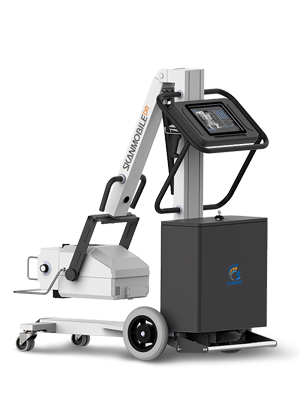

Skanmobile DR

Ultralight mobile HF DR system
200 kHz, 4 kW, 100 mA with APR (Anatomically Programmed Radiography)
Integrated console on tube head
Bar-code reader for easy patient data input & storage (optional)
Near zero leakage radiation
90° collimator rotation for easy positioning
Tube-head rotation for minimal mobility patients
Quad Core Processor
Multiple Operating System Options
12” QHD (2160 x 1440 Pixels) resolution LCD display
Dual Touch 10 finger capacitive touch screen with IP-55 protection
8GB RAM and 256 GB Solid State Drive
Interface – USB 3.0, LAN & HDMI
11 hours Back-up with twin batteries

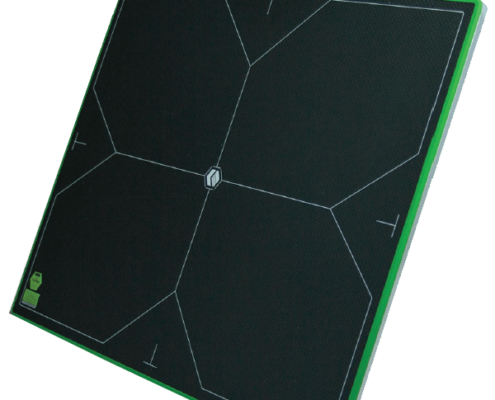

Direct deposit CSI scintillator, wireless panel
14” x 17” active display area
Image preview time: <10 seconds
Exposure Control: Full Field Automatic Exposure Detection
Dual band 2.4GHz/5GHz wireless transmission

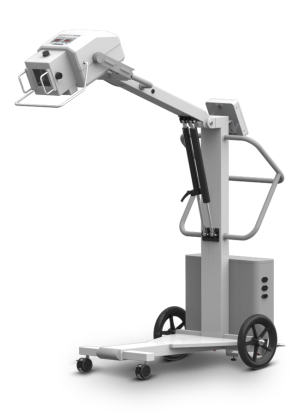

Skanmobile

200 kHz, 4 kW, 100mA Mobile HF X-Ray
Draws clean power from mains
Negligible leakage radiation
Easy to move (<85 kg)
90° collimator rotation
Tube-head rotation
Light field intensity min 160 Lux @ 1m
Suitable for NICU, ICU, Trauma & Ortho

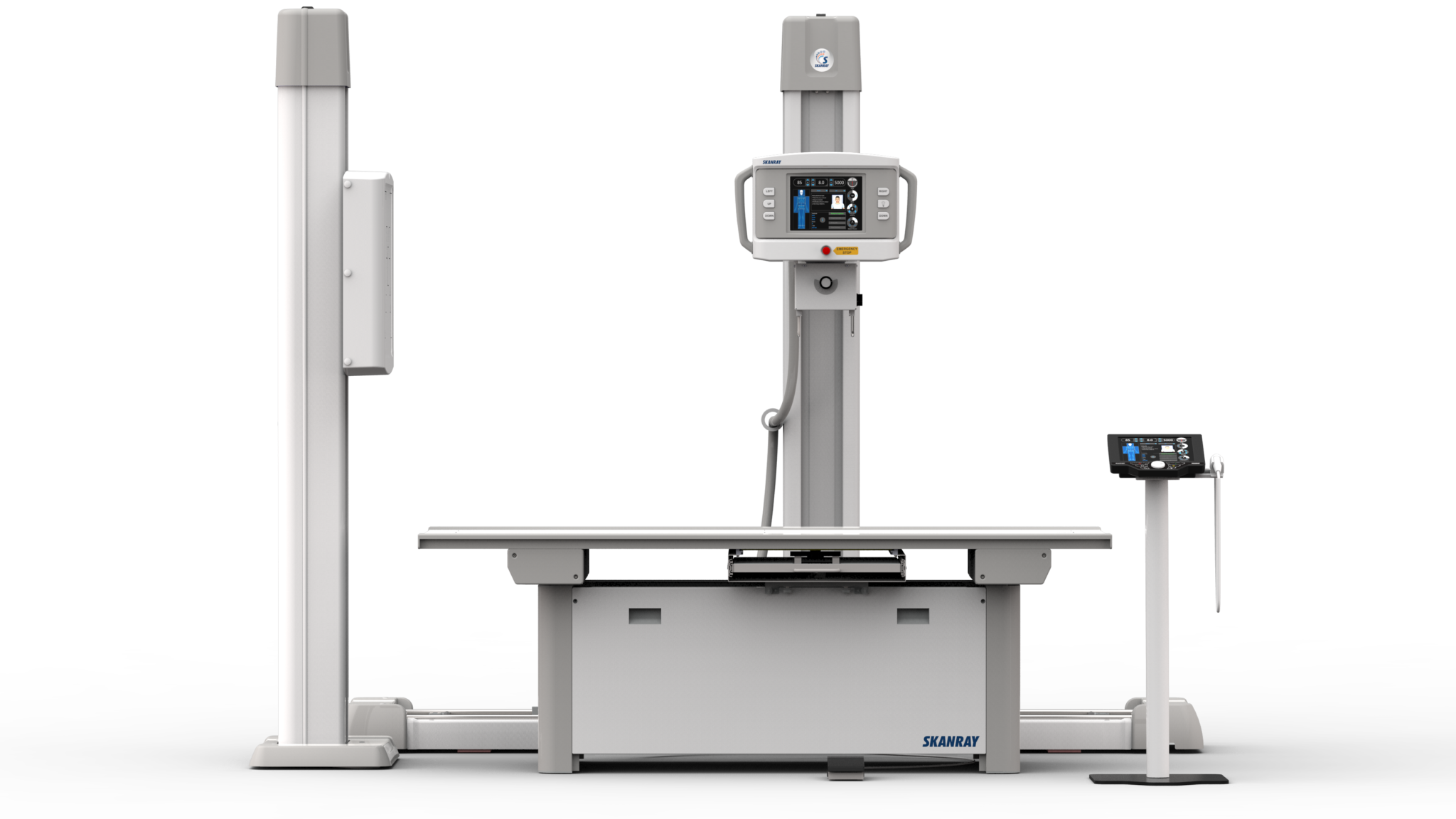

SkanRAD 400

High Frequency Fixed Radiography System

SkanRAD is an advanced floor mounted high frequency X-Ray system offering simplified work flow,
better ergonomics and superior image quality. System is powered with 32kW state of the art high
frequency generator in mono-block form with very low leakage radiation.

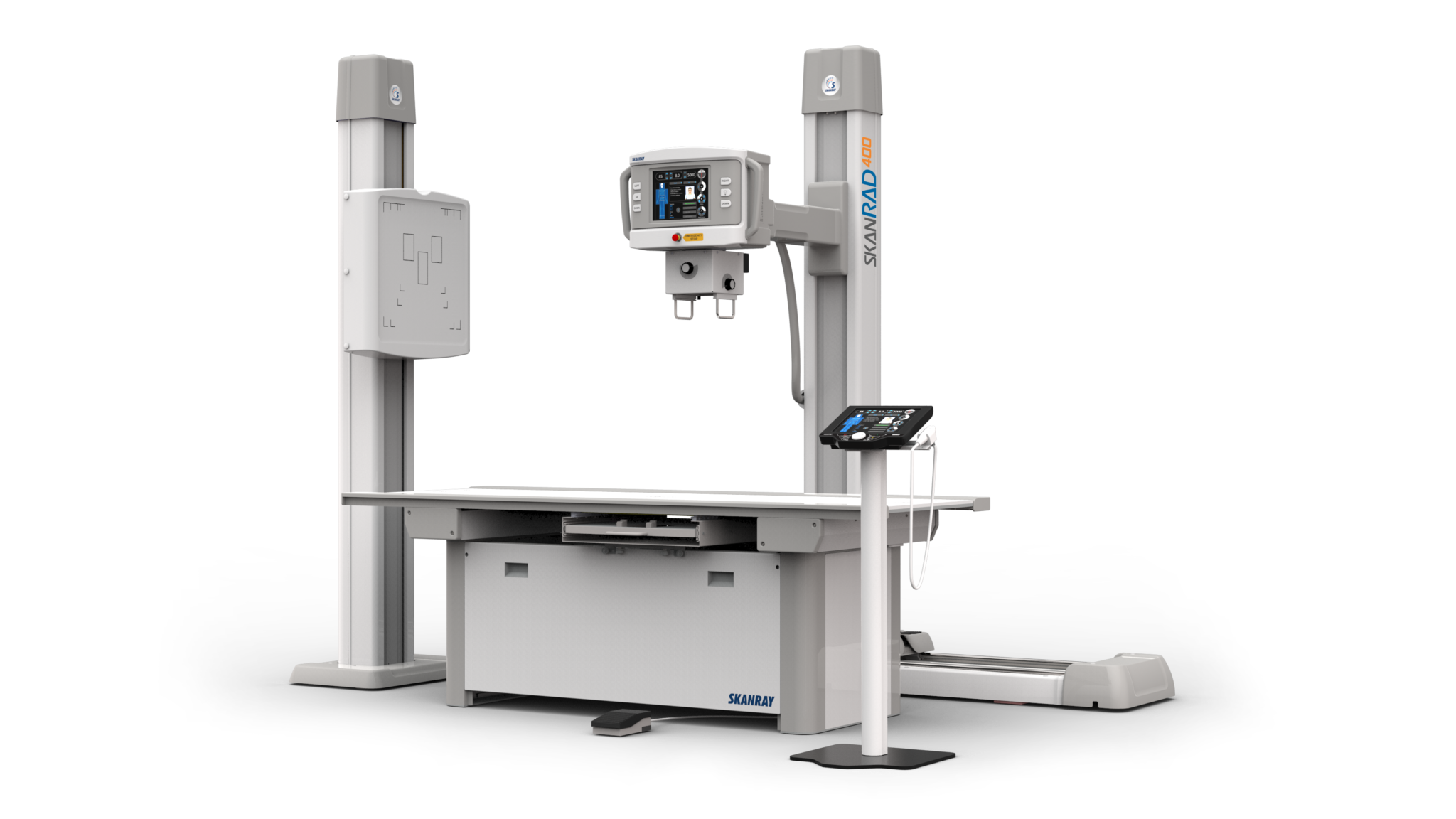

SkanRAD 400 DR-S

Varex 4336W PaxScan, 14”x17” size,
Wireless 139 microns FPD with Accessories
Image Work station: Image-Processing
Software, Computer, Monitor & accessories

SkanRAD 400 DR-D

Varex 4336W PaxScan, 14”x17” size,
Wireless 139 microns FPD with Accessories
Varex 4343RC PaxScan, 17”x17” size, Wired
139 Microns FPD with Accessories
Image Work station: Image-Processing
Software, Dual detector Communication
Software, Computer, Monitor & Accessories

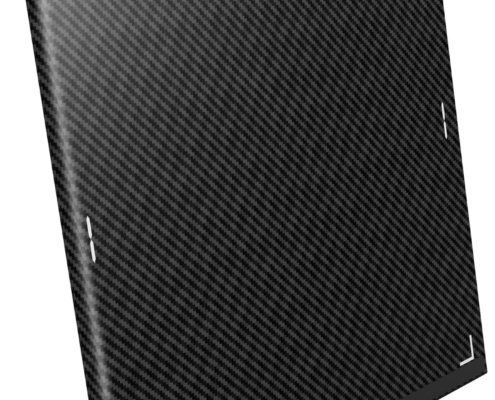

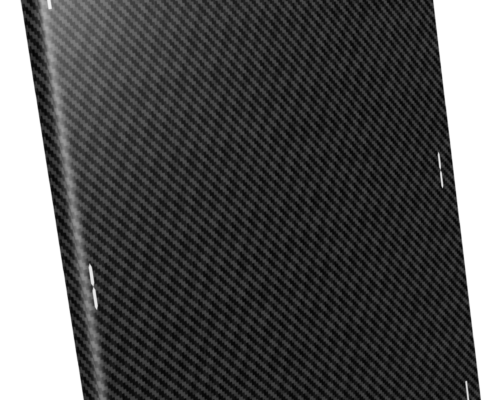

TigerView

High Quality, yet Simple and Cost-effective CSI DR-Wired Solutions
Weighs only 8 lbs
Available in sizes 10″x12″, 14″x17″ and 17″x17″
3 sizes wired (10″x12″, Tiger DR-Wired is a cassette size flat panel detector available with a 14″x17″ and 17″x17″) 14”x17” active area sensor.

TigerView DR-Wired fits into existing bucky trays and does not require a cable connection with an X-ray generator to synchronize the signals. The entire active area is prepared with the “Autosense” technology 8 second image acquisition time and takes care of the exposure timing.

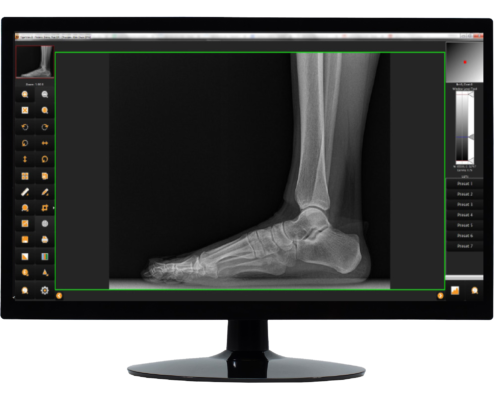

This ultra thin and lightweight wired detector allows digitizing without modification of existing conventional imaging systems. Directly integrates with TigerView software. Low power-consumption, thermal-efficient design, and one-cable connection make the Tiger DR – CT Medical easy to install and operate.

Tiger DR-Wired benefits include:
